Getting started with PARAMETRA

Introduction

PARAMETRA is an R data package containing curated parameters for livestock disease modelling. The package includes one combined dataset, parametra_long, plus one dataset per parameter group.

Installation

# Install from GitHub
# install.packages("remotes")
remotes::install_github("BIOSECURE-EU/parametra")

library(parametra)
library(dplyr)
library(ggplot2)
library(tidyr)

Data included in the package

The main dataset is parametra_long, which stacks all parameter-group tables into a single analysis-ready table. The column parameter_type identifies the original parameter group.

A quick overview of the number of records by parameter group:

parametra_long %>%
  count(parameter_type, sort = TRUE)

## # A tibble: 8 × 2
##   parameter_type                      n
##   <chr>                           <int>
## 1 transmission                     1076
## 2 diagnostic_test                   721
## 3 infectious_latent_incuba_period   420
## 4 within_herd_prevalence            175
## 5 regional_prevalence                92
## 6 pathogen_survival                  48
## 7 other                              22
## 8 control_plan                        9

And the number of records by pathogen:

parametra_long %>%
  count(pathogen, sort = TRUE)

## # A tibble: 24 × 2
##    pathogen                   n
##    <chr>                  <int>
##  1 Avian Influenza          577
##  2 Paratuberculosis         313
##  3 E. coli                  300
##  4 Hepatitis E              248
##  5 African Swine Fever      186
##  6 Bovine Tuberculosis      177
##  7 PRRS                     120
##  8 Swine Influenza          109
##  9 Salmonella               102
## 10 Foot and Mouth Disease    79
## # ℹ 14 more rows

Finding relevant records

Most analyses start by filtering parametra_long. For example, the code below finds African swine fever transmission records with an available numeric value.

asf_transmission <- parametra_long %>%
  filter(
    pathogen == "African Swine Fever",
    parameter_type == "transmission",
    !is.na(value)
  )

Use distinct() to see which values are available before filtering:

parametra_long %>%
  distinct(parameter_type, parameter) %>%
  arrange(parameter_type, parameter) %>%
  head(20)

## # A tibble: 20 × 2
##    parameter_type                  parameter
##    <chr>                           <chr>
##  1 control_plan                    NA
##  2 diagnostic_test                 Sensitivity
##  3 diagnostic_test                 Specificity
##  4 infectious_latent_incuba_period Incubation period
##  5 infectious_latent_incuba_period Infectious period
##  6 infectious_latent_incuba_period Latent period
##  7 infectious_latent_incuba_period Other
##  8 infectious_latent_incuba_period Shape
##  9 other                           Other
## 10 pathogen_survival               Fomites transmission
## 11 pathogen_survival               Survival/Disinfection
## 12 regional_prevalence             Global Prevalence
## 13 regional_prevalence             Herd prevalence
## 14 regional_prevalence             Other
## 15 transmission                    Basic reproduction number
## 16 transmission                    Other
## 17 transmission                    Probability of reactivation of latent infect…
## 18 transmission                    Probability of transmission between farms
## 19 transmission                    Probability of transmission via direct conta…
## 20 transmission                    Probability of transmission via indirect con…

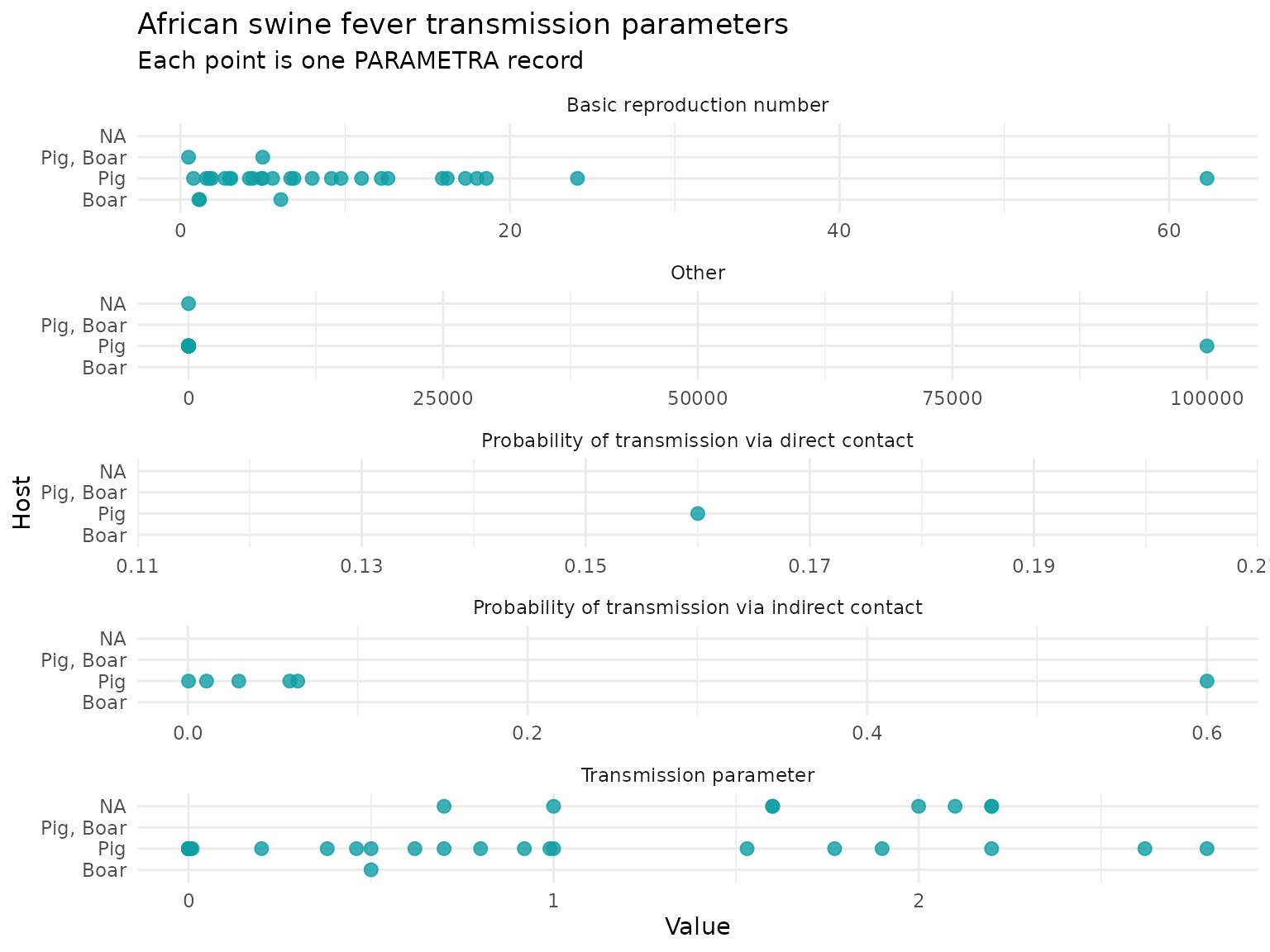

Example 1: Transmission parameters for African swine fever

This example plots transmission-parameter values for African swine fever, faceted by parameter. The record id is kept in the plotting data so the source row can be traced back to PARAMETRA.

asf_transmission %>%
  ggplot(aes(x = value, y = host)) +
  geom_point(color = "#0F9DA4", size = 2.5, alpha = 0.8) +
  facet_wrap(~ parameter, ncol = 1, scales = "free_x") +
  labs(
    title = "African swine fever transmission parameters",
    subtitle = "Each point is one PARAMETRA record",
    x = "Value",
    y = "Host"
  ) +
  theme_minimal()

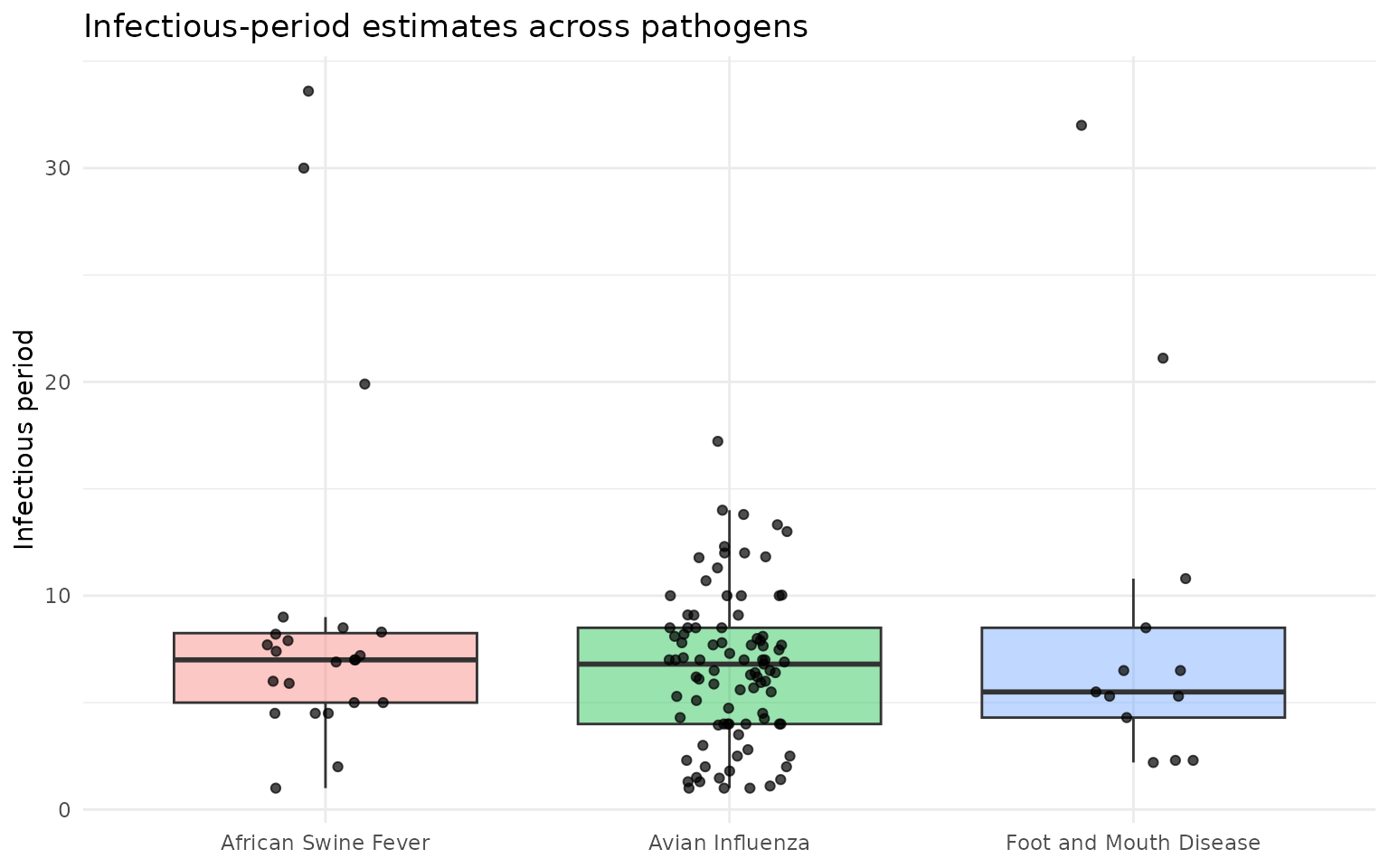

Example 2: Comparing infectious periods across pathogens

Here we compare infectious-period estimates for three pathogens. This example is useful for checking the range of values before selecting parameters for a model.

infectious_periods <- parametra_long %>%
  filter(
    parameter == "Infectious period",
    pathogen %in% c("Foot and Mouth Disease", "African Swine Fever", "Avian Influenza"),
    !is.na(value)
  )
ggplot(infectious_periods, aes(x = pathogen, y = value, fill = pathogen)) +
  geom_boxplot(outlier.shape = NA, alpha = 0.4) +
  geom_jitter(width = 0.15, height = 0, alpha = 0.7, size = 1.5) +
  labs(
    title = "Infectious-period estimates across pathogens",
    x = NULL,
    y = "Infectious period"
  ) +
  theme_minimal() +
  theme(legend.position = "none")

Working with references

Each record includes reference fields so parameter values can be traced to their source. Useful columns include:

• ref: DOI, DOI URL, PubMed URL, or stable web URL

• ref_short: short human-readable citation, when available

• ref_status: status assigned during PARAMETRA curation

• ref_last_access: date when a URL reference was last checked.

parametra_long %>%
  count(ref_status, sort = TRUE)

## # A tibble: 3 × 2
##   ref_status        n
##   <chr>         <int>
## 1 doi_found      2530
## 2 url_unchecked    32
## 3 doi_not_found     1

Interpreting PARAMETRA data

PARAMETRA is curated to support disease-modelling work, but users should still assess whether each record is appropriate for their specific modelling context. Before accepting a parameter value as suitable, we recommend reviewing the contextual information and notes provided in the database, and consulting the original reference.

Contributing new records

New records can be submitted through the PARAMETRA submission form or via contact@parametra.eu.
